THE BEST CARRIER
IN ITS CLASS
THE BEST CARRIER
IN ITS CLASS
Our first crawler carrier remains the best in its class. Contractors in the drilling, pipeline, utilities, and general construction industries have come to rely on the RT9 for its versatility and reliability.
Compact enough to not require a load permit when transporting, but still featuring an 18,000 lb. carrying capacity, the RT9 is ready to work on job site after job site.
18,000 lb. Carrying Capacity
Move up to 9 tons of materials and equipment into difficult environments efficiently and effectively.
Simple Customization

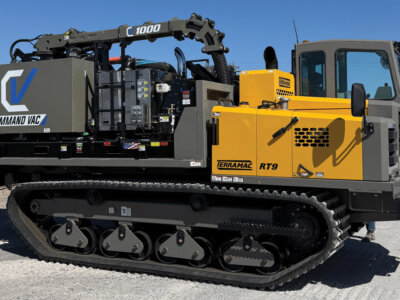

The RT9’s customizable chassis is ideal for mounting specialty equipment like cranes, drills, water tanks, spray booms, hydroseeders, fifth wheels, and more.
Standard Safety Features
Rollover protective structures (ROPS) and falling object protective structure (FOPS) ensure the safety of your operators.
Make your job even easier with a wide range of attachments.
From Alaska and the Yukon to the tip of Florida, our vast dealer network has you covered anywhere in the U.S. and Canada.
Full Length/with Rock Bed | 19' 6" | 5.9 m |
Full Height | 9' 11" | 3.0 m |
Width Over Tracks | 8' 3" | 2.5 m |
Track Gauge (Center-to-Center) | 6' | 1.8 m |
Min Ground Clearance | 21" | 0.5 m |
Front Overhang | 2' 6" | 0.8 m |
Track Width | 27.5" | 0.7 m |
Undercarriage Length (Idler to Drive Hub) | 12' 3" | 3.7 m |
Dump Bed Loading Height Over Side | 5' 11" | 1.8 m |
Height of Rock Side (Vessel) | 20" | 0.5 m |
Length of Rock Bed (Vessel) | 10' 6" | 3.2 m |
Width of Rock Bed (Vessel) | 7' 3" | 2.2 m |
Dumping Angle | 60° | 1 rad |
Machine Weight (with bed) | 26,180 lbs | 11,875 kg |
Machine Weight (no bed) | 22,368 lbs | 10,146 kg |
Manufacturer | Cummins | Cummins |
Model | QSB 6.7 T4F | QSB 6.7 T4F |
Displacement | 408 cu. in. | 6.7 L |
Horsepower | 225 HP @ 2200 RPM | 168 kW |
Electrical System | 12 VDC | 12 VDC |
Battery | (2) GRP 31, 1125 CCA | (2) GRP 31, 1125 CCA |
Fuel Capacity | 64 gallons | 242 L |
Transmission | HST | HST |
Drive Pump Max Flow (x2) | 43 gpm / side | 163 L/m |
Drive Pump MAX Pressure | 5,500 PSI | 379 bar |
Tandem Gear Pump Max Flow | ||
Front Section (AUX Output) | 25 gpm @ 3000 PSI | 95 L/m @ 206 bar |
Rear Section (HST Drive) | 22 gpm @ 550 PSI | 83 L/m @ 38 bar |
Optional Pump Drive | 25 gpm @ 2500 PSI | 95 L/m @ 172 bar |
Max. Carrying Capacity | 18,000 lbs. | 8,165 kg |
Travel Speed - 1st Gear | 3.6 mph | 5.8 kph |
Travel Speed - 2nd Gear | 6.6 mph | 10.6 kph |
Maximum Gradability | 58% (30°) | 1 rad |
Turning Radius | Zero Turn | |
Ground Pressure (Loaded) | 6.4 PSI | .45 kg/c2 |
Ground Pressure (Unloaded) | 3.8 PSI | .27 kg/c2 |
As part of our commitment to quality and reliability, Terramac provides a limited warranty:
The Terramac Carrier Limited Warranty extends until the sooner of (a) twenty-four (24) months or (b) until the Terramac Carrier’s electronic control module (“ECM”) exceeds 1000 hours (henceforth known as the “Limited Warranty Period”).
Registration of Terramac Limited Warranty is required within 6 months of invoice date or upon the machines ECM reaching 50 hours, whichever comes first. Failure to do so will cause machine warranty to default back to the date of invoice to the original purchaser. (See warranty registration form). The Terramac Carrier Limited Warranty terminates upon the expiration of the Limited Warranty Period.
Terramac warrants that it will replace, at its sole option and discretion, any original parts of any Terramac Carrier sold by it that are deemed to be defective in material or workmanship, with the exception of parts and components identified in Section IV “Pass-through Warranties” and Section V “Exclusions from Limited Warranty”. All warranty repairs or replacements will be free of charge and must be performed by an authorized Terramac dealer or approved vendor. Repaired or replaced parts are covered only for the remainder of the Limited Warranty Period.
To view the complete Terramac warranty download it here.
