BUILT TO PERFORM

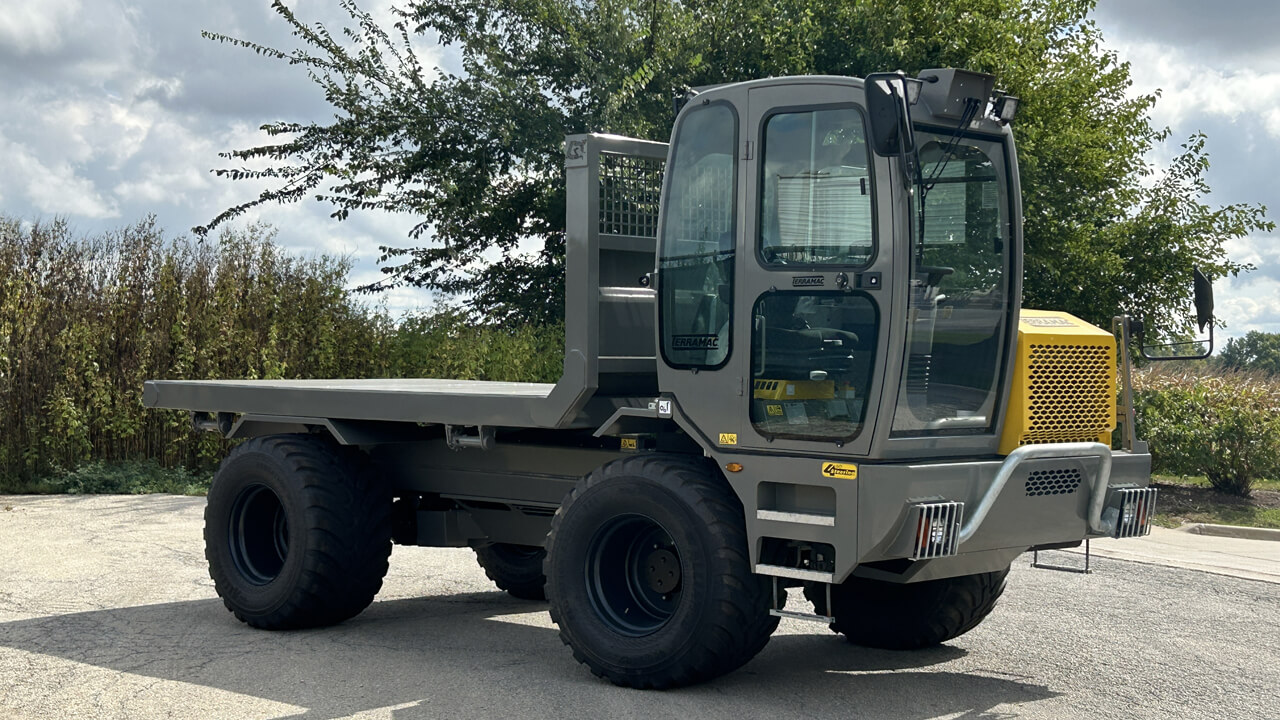

The D14 is here to redefine heavy lifting with its 30,000 lb. payload, the largest in the Wheeled Dumper Series. This beast is ready to tackle the toughest jobsites with unmatched strength and reliability.
Say goodbye to maneuvering hassles and hello to effortless control! Featuring 3 mode/4 wheel steering, operators have more control than ever as they navigate challenging jobsites.
30,000 lb. Carrying Capacity
When materials need to be moved, this machine accepts the challenge with unmatched efficiency.
3 Steering Modes
With 2-wheel front steer, 4-wheel steer and crab walk options, this unit is designed for optimal maneuverability.
Operator Comfort
Ergonomic seating, climate control and easy-to-use controls keep operators productive and safe.
From Alaska and the Yukon to the tip of Florida, our vast dealer network has you covered anywhere in the U.S. and Canada.
| Overall Length | 17' 9" | 5.4 m |
| Overall Width | 8' 4" | 2.5 m |
| Overall Height | 10' 6" | 3.2 m |
| Machine Weight | 13,600 lbs. | 6,169 kg |
| Minimum Ground Clearance | 16.9" | .43 m |
| Frame Type | Rigid | Rigid |
| Front Axle | 8° Oscillating Automatic Limited Slip Planetary Reduction at Hubs | 8° Oscillating Automatic Limited Slip Planetary Reduction at Hubs |
| Rear Axle | Fixed; Fully Locking Differential Planetary Reduction at Hubs | Fixed; Fully Locking Differential Planetary Reduction at Hubs |
| Turning Radius | 16' 11" | 5.2 m |
| Standard Tire Size | Trelleborg 500mm/60R22.5" | Trelleborg 500mm/60R22.5" |
| Approach Angle | 35° | 35° |
| Bed Slewing Angle | Rear Dump | Rear Dump |
| Machine Weight | 13,600 lbs. | 6,168 kg |
| Manufacturer | Perkins | Perkins |
| Model | 904J-E36TA | 904J-E36TA |
| Emissions Certifications | US Stage V/Tier 4 Final | US Stage V/Tier 4 Final |
| Horsepower | 121 hp | 89 kW |
| Fuel Capacity | 46.2 gal. | 174.9 L |
| Electrical System | 12V | 12 V |
| Battery | (1) 12V 50Ah,1000 CCA AGM | (1) 12V 50Ah,1000 CCA AGM |
| Transmission | 4-speed HST | 4-speed HST |
| Drive Pump Max Flow | 47.3 GPM | 179 L/m |
| Drive Pump Max Pressure | 6,962 PSI | 480 bar |
| AUX Pump | 16.5 GPM | 62.5 L/m |
| Steering and Brake Pump | 12.7 GPM | 48 L/m |
| Max. Carrying Capacity | 30,865 lbs. | 14,000 kg. |
| Top Speed | 21.7 mph | 34.9 kmh |
| Gradability | 40% (22°) | (.03 rad) |
| Dumping Angle | 70° | 1.2 rad |
As part of our commitment to quality and reliability, Terramac provides a limited warranty:
The Terramac Carrier Limited Warranty extends until the sooner of (a) twenty-four (24) months or (b) until the Terramac Carrier’s electronic control module (“ECM”) exceeds 1000 hours (henceforth known as the “Limited Warranty Period”).
Registration of Terramac Limited Warranty is required within 6 months of invoice date or upon the machines ECM reaching 50 hours, whichever comes first. Failure to do so will cause machine warranty to default back to the date of invoice to the original purchaser. (See warranty registration form). The Terramac Carrier Limited Warranty terminates upon the expiration of the Limited Warranty Period.
Terramac warrants that it will replace, at its sole option and discretion, any original parts of any Terramac Carrier sold by it that are deemed to be defective in material or workmanship, with the exception of parts and components identified in Section IV “Pass-through Warranties” and Section V “Exclusions from Limited Warranty”. All warranty repairs or replacements will be free of charge and must be performed by an authorized Terramac dealer or approved vendor. Repaired or replaced parts are covered only for the remainder of the Limited Warranty Period.
To view the complete Terramac warranty download it here.
